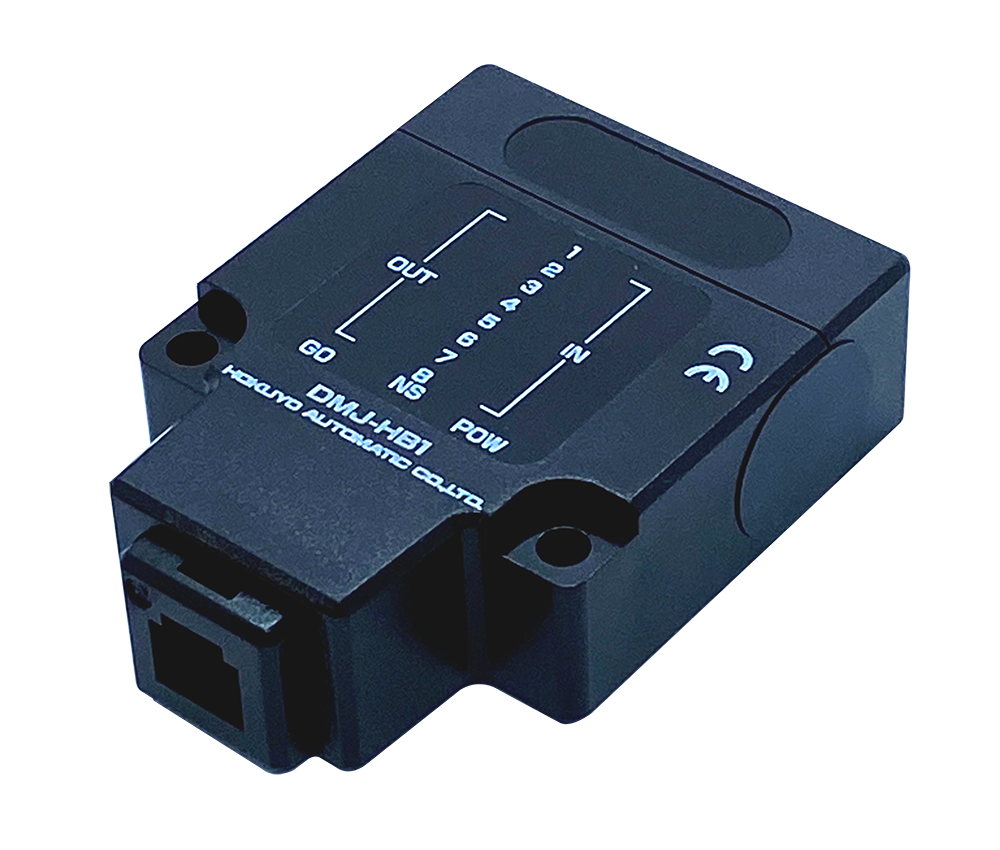

DMJ-HB1

Overview

An 8 BIT parallel data device with integral nonvolatile memory.

Common Applications

Semi Conductor

Operation Benefits

Range - 1m
Head On/Side On - Side On
Weight - head: Approx. 50g, connector: Approx. 70g

Technical Information

Technology - Infrared Data Transmission
Range - 1m

Product details

An 8 BIT parallel data transmission system from Hokuyo with integral nonvolatile memory. The opto sensor is contained in a housing with RJ11 connector, and the memory module is contained within a 25 pin D submodule, also with an RJ11 connector. The 2 elements communicate via RS485 through an RJ11 cable up to 200m in length.

  • Technology - Data Transmission
  • Range - 1m
  • Direction - Side on
  • Directional Angle (full angle) - 30º
  • Model Type - 8 bitº
  • Transmission method - Half duplex two-way transmission
  • Transmission time - 40ms
  • Modulation Method - Pulse modulation
  • Detection Method - Parity check
  • Power Source - 24VDC
  • Current Consumption - 100mA or less
  • Input - Contact or open-collector, ON current 2.5mA or more, OFF current 1mA or less
  • Output - NPN open-collector output (30VDC or less, residual voltage 1.8V or less)
  • Connection - Modular jack - 4-core cable, RS-485 & power
  • Ambient Illuminance - 4,000lx or less
  • Ambient Temperature/humidity - -10ºC to +50ºC, 85% RH or less (Without dew, frost)
  • Vibration Resistance - Double amplitude 1.5mm 10 to 30Hz each 2 hour in X, Y and Z directions
  • Impact Resistance - 500 m/s2, each 10 time in X, Y & Z directions
  • Protective Structure - IP40 (IEC Standard)
  • Case Material - Polycarbonate
  • Weight - head: Approx. 50g, connector: Approx. 70g
  • Model Type - Reception standby mode (fixed)
