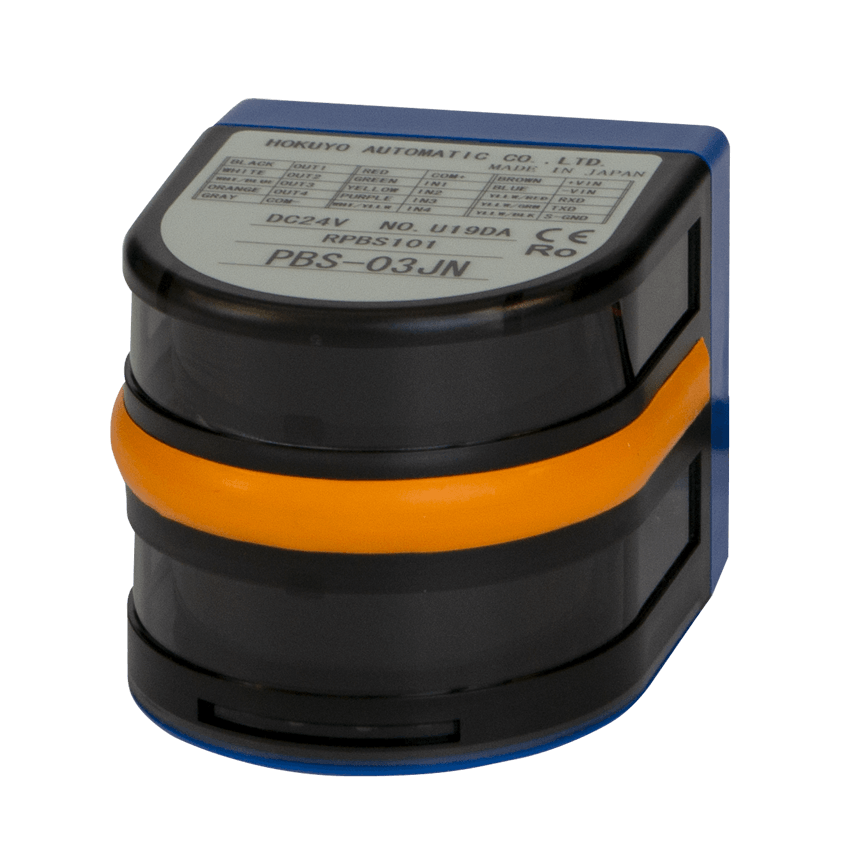

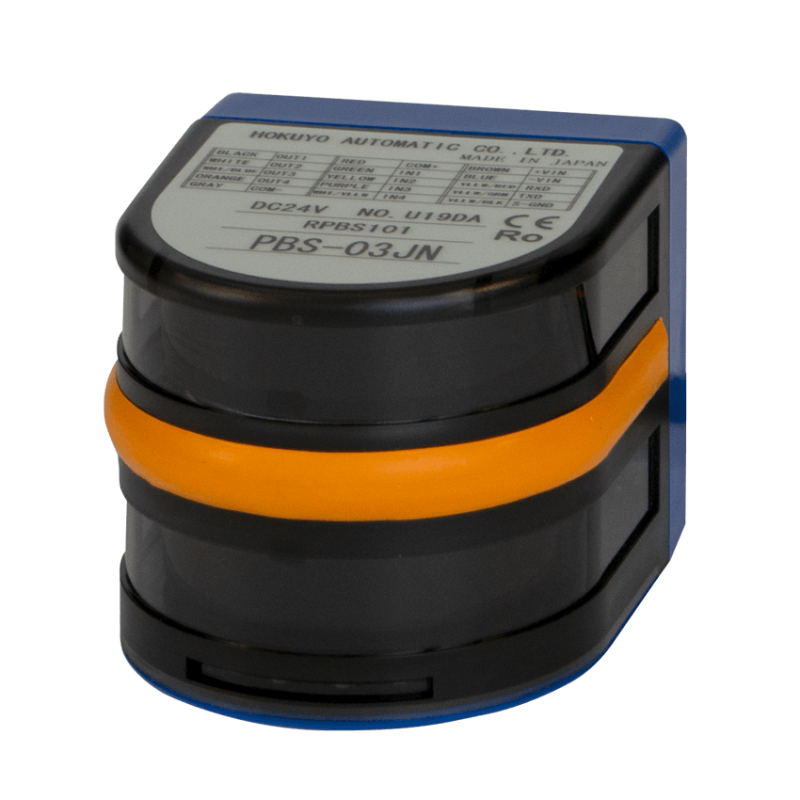

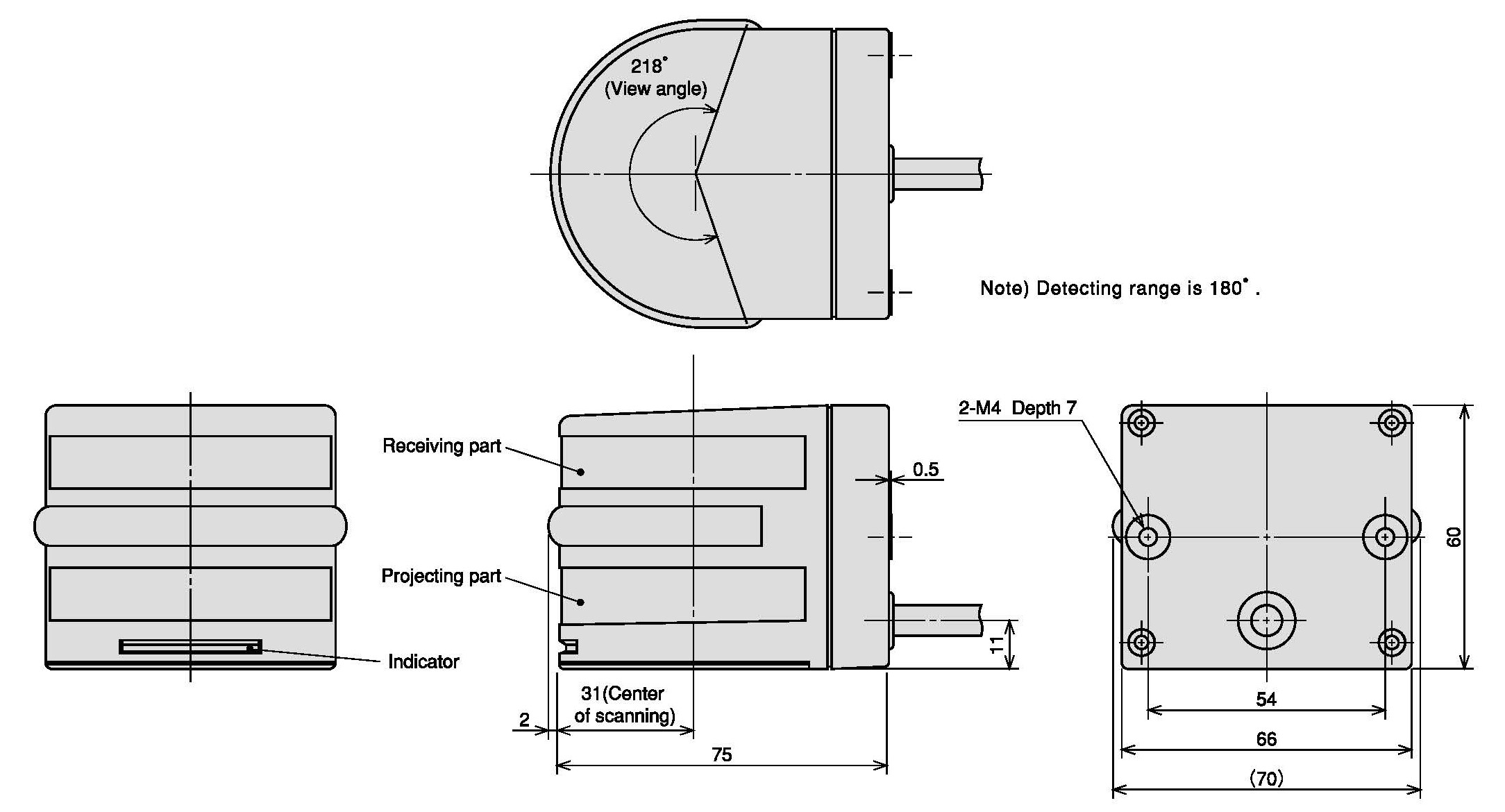

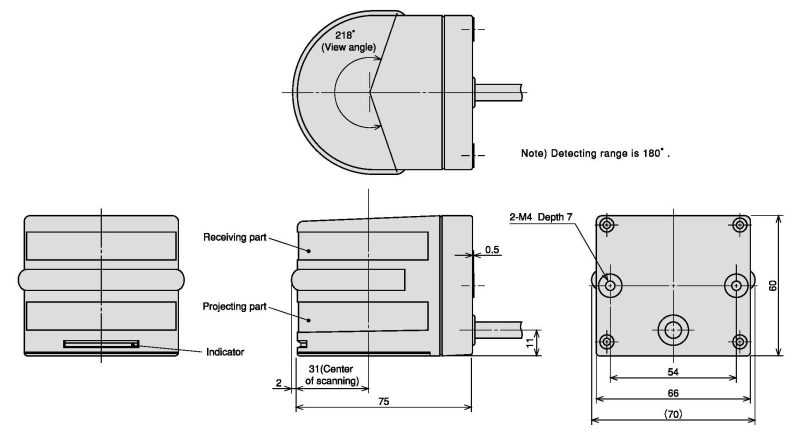

PBS-03JN

Overview

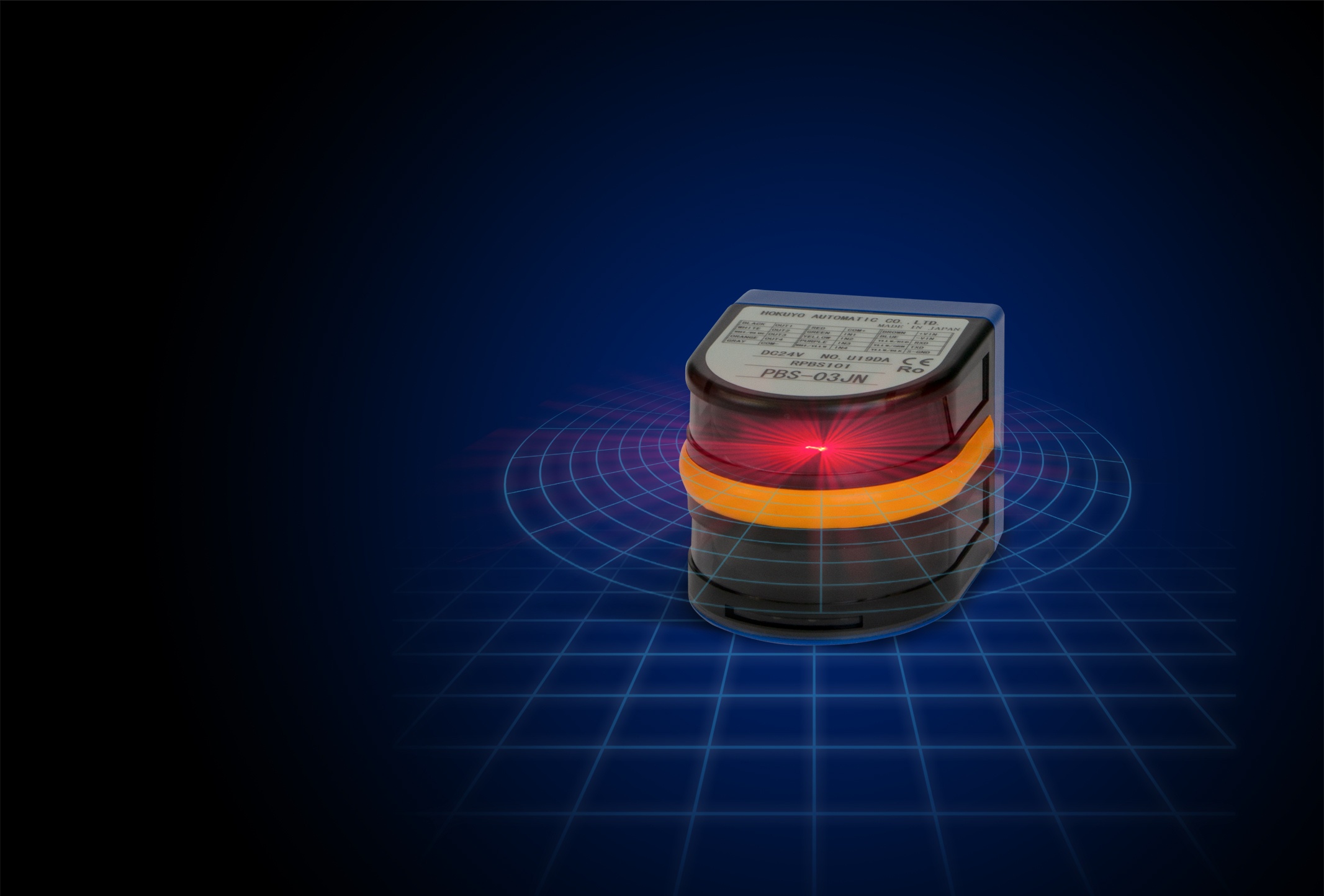

3m range, Infra-red LED obstacle detection device with ability to configure warning zones.

Operation Benefits

Range - 3m
Scan window/ angle - 100°
Weight - 500g

Technical Information

Technology - Infra-red LED
Range - 3m
Field of View - 100°

Product details

  • Range - 3m
  • Field of View - 100°
  • Scan Speed - Normal operating mode : 180ms or less (Scanning time 100ms/1 rev.) Low-speed scanning mode : 200ms or less (Scanning time 110ms/1 rev.) 2-scanning operating mode : the above time + each scanning time
  • Type (2D/3D/RADAR) - 2D
  • Supply - 24VDC (Operating range 18 to 30VDC, ripple within 10%)
  • Output - Photo-coupler/open-collector output (30VDC 50mA Max.) Output 1 : OFF when detected in area Output 2 : OFF when detected in area Output 3 : OFF when detected in area (Except for synchronous type) Trouble output : ON during normal operation (Note) Output 1 to 3 show the state it is detecting object when this output executes
  • Input - Photo-coupler input (Anode common, Each input ON current 4mA) Setting detecting area changeover
  • Weight - Approx. 500g (excluding cable)
  • Operating Temperature Range - -10 to +50 degrees C, 85%RH or less (Without dew, frost)
  • Detection range - White kent paper with 300mm×300mm (Placed in parallel with sensor projecting/ receiving surface) Area with vertical direction 0.2 to 3m and width 2m(Origin point is scanning centre position) but within scanning angle 180 degrees
  • IP Rating - IP64
  • Connections - Lead wire 1m long
  • Light source - Infra-red LED (wave length 880nm)
  • Beam diameter - Approx ∅100m (at 3m)
  • Supply voltage - 24VDC (Allowable range 18 to 30VDC including ripple)
