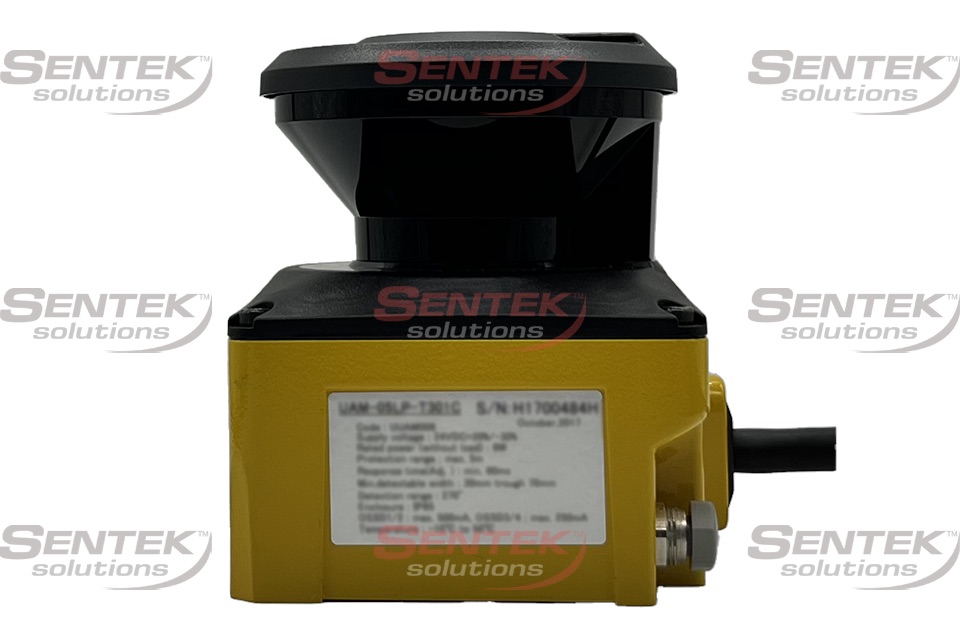

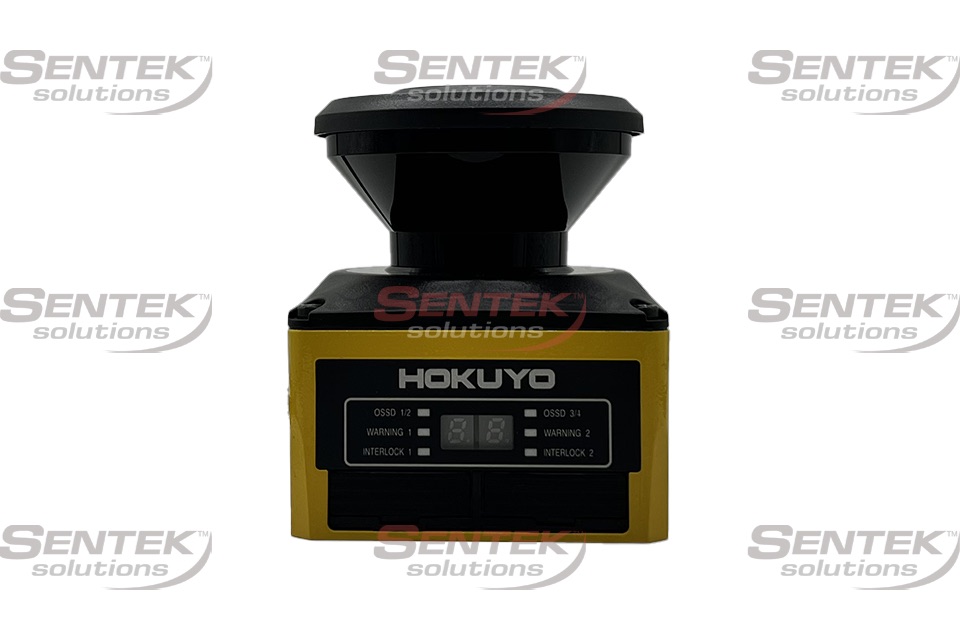

UAM-05LP-T301C

Overview

Connector type version of the Hokuyo safety LiDAR, 5m Safety zone plus 2 additional warning zones up to 20m, 40m measurement data is also available via Ethernet for AGV.

Common Applications

AGV navigation
Human Safety
Static guarding

Operation Benefits

Indoor/ Outdoor - Indoor
Range - 5m safety range / 20m warning range
Scan window/ angle - 270°
Communication - Ethernet 100BASE-TX
Dimensions (l x w x h) - 80mm x 80mm x 95mm
Weight - 800g

Technical Information

Technology - Time of Flight
Range - 5m safety range / 20m warning range
Field of View - 270°

Product details

  • Protection range - Max 5m
  • Warning range - Max 20m
  • Distance tolerance - + 100mm
  • Detection capability - From black-reflector sheet (1.8%) to retro-reflector sheet
  • Detectable range - 270°
  • Minimum detectable width - ∅ 30mm (max : 1.8m) ∅ 50mm (max : 3m) ∅ 70mm (max : 5m)
  • Scan frequency - 30ms (rotational speed 2000rpm)
  • Area pattern - Max 32 patterns
  • Response time - OFF 60ms - 510ms | ON 270ms - 510ms
  • Element - Pulsed laser diode
  • Wave length - 905nm
  • Safety class - Laser class 1
  • Type - Type 3 (IEC 61496–1, IEC 61496–3)
  • Functional safety - SIL 2 (Type B, HFT=1) (IEC61508)
  • PFHd - 7.8×10-8 (T1=20 year) : When master slave function is not in use. 1.6×10-7 (T1=20 year) : When master slave function is in use.
  • Size - 80mm x 80mm x 95mm (excluding cable)
  • Weight - Approx. 800g (excluding cable)
  • Protection - IP65
  • Power supply - DC 24V ±10% : when operation using converter power supply DC 24V −30% / +20% : when operating using battery
  • Configuration - USB2.0 (USB micro type-B connector)
  • Data output - Ethernet 100BASE-TX
  • Connection cable - ODU Connector to 30cm cable
