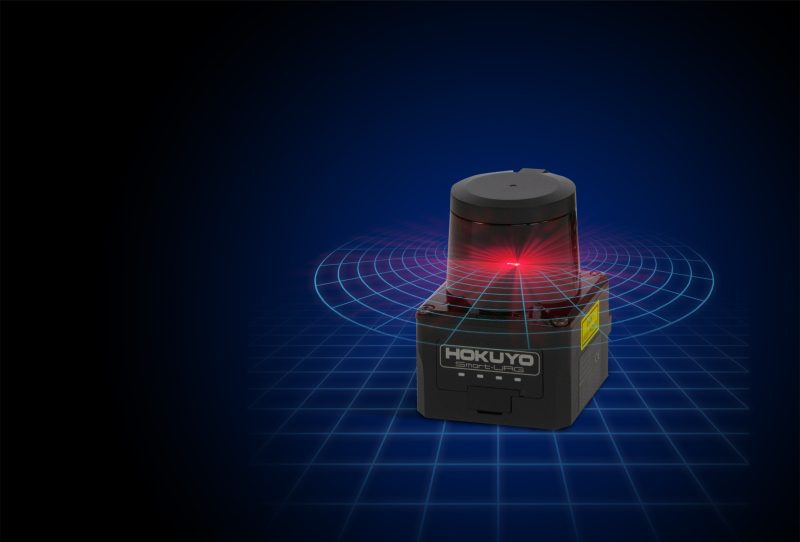

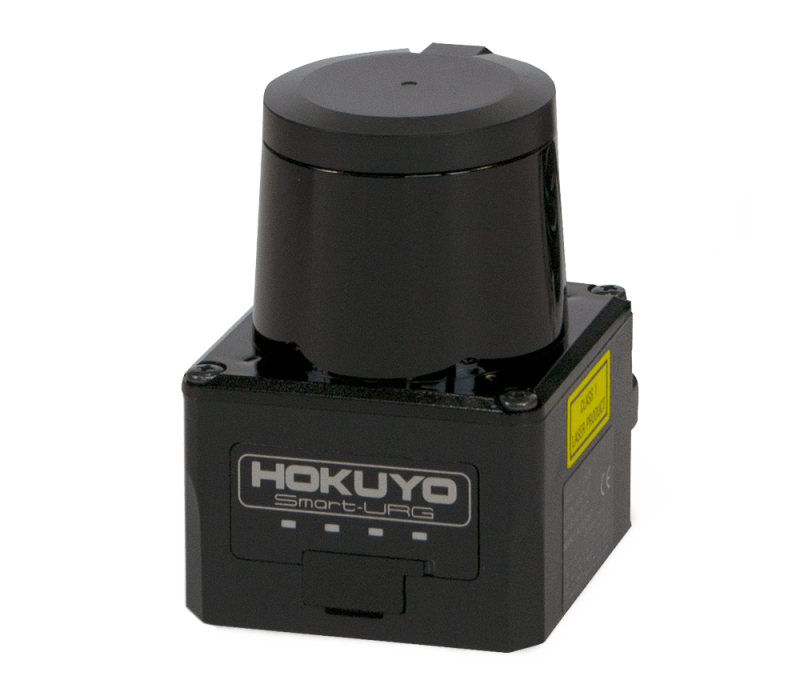

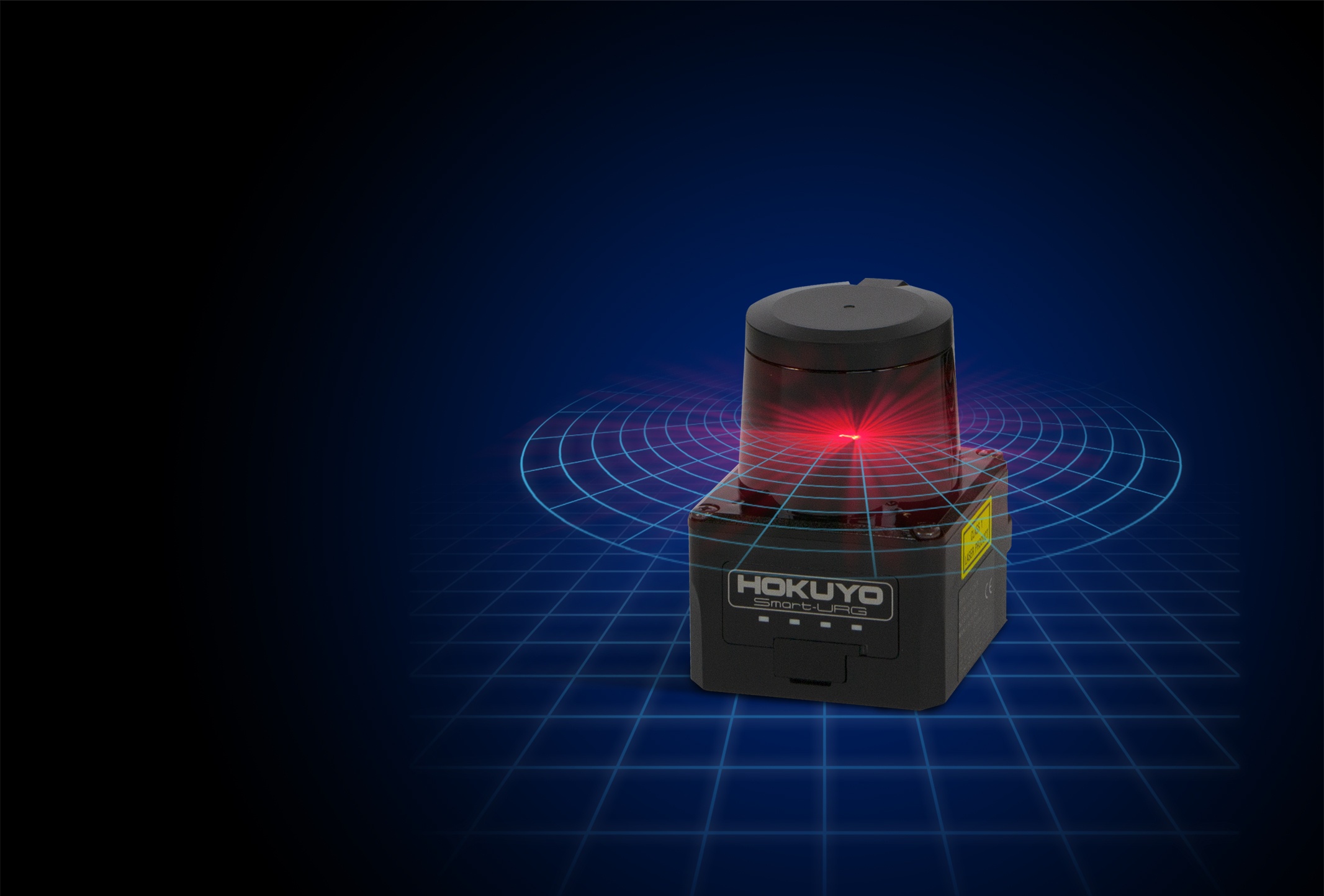

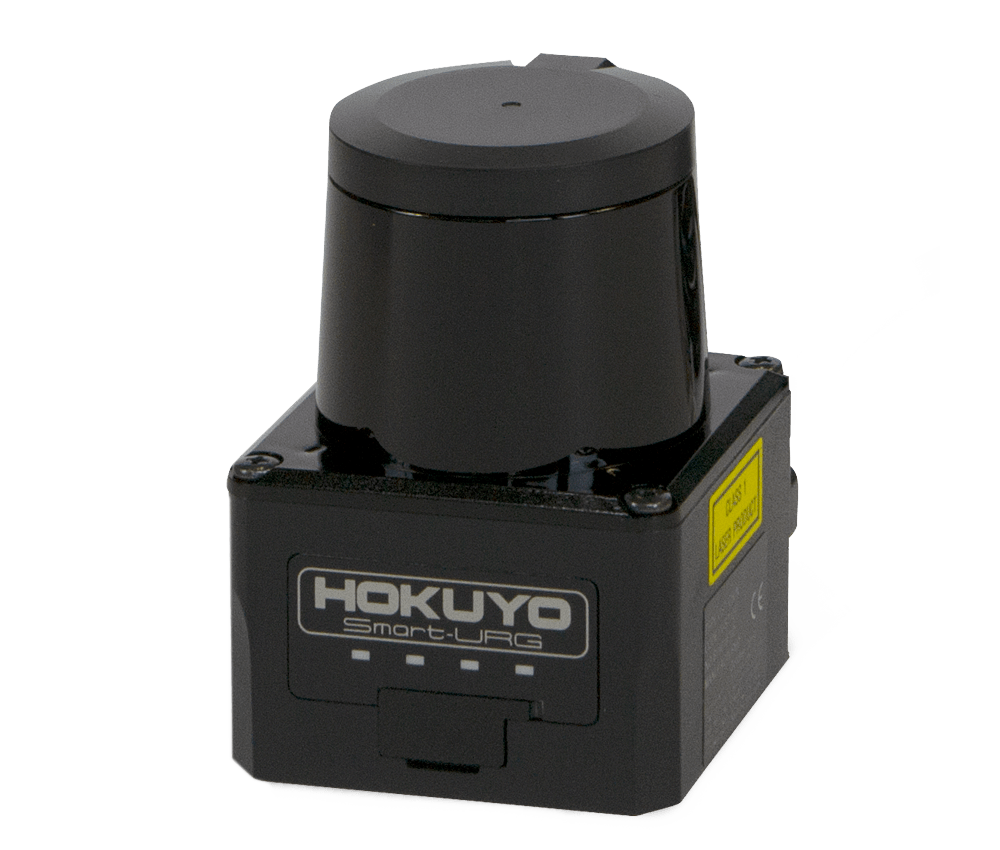

UST-05LN

Overview

This device offers obstacle detection where human safety is not needed. 16 areas (48 zones) are provided with a 5m range. Great for slow moving AGC's and AMR's.

Common Applications

AMR
AGC
Shuttle Systems

Operation Benefits

Indoor/ Outdoor - Indoor
Range - 5m
Scan window/ angle - 270°
Communication - USB / IO
Dimensions (l x w x h) - 50mm x 50mm x 70mm
Weight - 130g

Technical Information

Technology - Time of Flight
Range - 5m
Field of View - 270°

Product details

With a 5m range and 16 configurable area patterns (48 zones) the UST-05LN is a a good solution for obstacle detection and collision avoidance where certified safety is not required or in human free zones for AMR and AGV type applications.

  • Range - 5m
  • Field of View - 270°
  • Resolution - 0.5°
  • Scan Speed - 40Hz (25ms)
  • Multi Echo - No
  • Type (2D/3D/RADAR)- 2D
  • Supply - 12VDC / 24VDC (operation range 10 to 30V, ripple within 10%)
  • Output - 3x Photo coupler / Open collector NPN Max DC 30V 50mA Normally on 1x Synchronous Output 1x Malfunction Output Normally on
  • Input - 5x 4ma Inputs for area selection
  • Weight - Approx. 130g (excluding cable)
  • Accuracy - 0.06m to 5m ±40mm
  • Operating Temperature Range - -10ºC to 50ºC Less than 85% RH (Without dew, frost)
  • Detection range - 0.06m to 5m (white kent sheet) Minimum detectable size 130mm (changes according to distance)
  • Detection range at 10% reflectivity - 0.06m to 2m (diffuse reflectance 10%)
  • Resolution - 0.5°
  • Repeated accuracy - Standard Deviation σ < 20mm
  • IP Rating - IP65
  • Connections - Power source, I/O cable: 1m flying lead, micro USB
  • Output - 3x Photo coupler / Open collector NPN Max DC 30V 50mA Normally on 1x Synchronous Output 1x Malfunction Output Normally on
  • Light Source - Laser semiconductor (905nm) Laser class 1(IEC60825-1:2007)
  • Supply voltage - 12VDC / 24VDC (Operation range 10 to 30V ripple within 10%)
