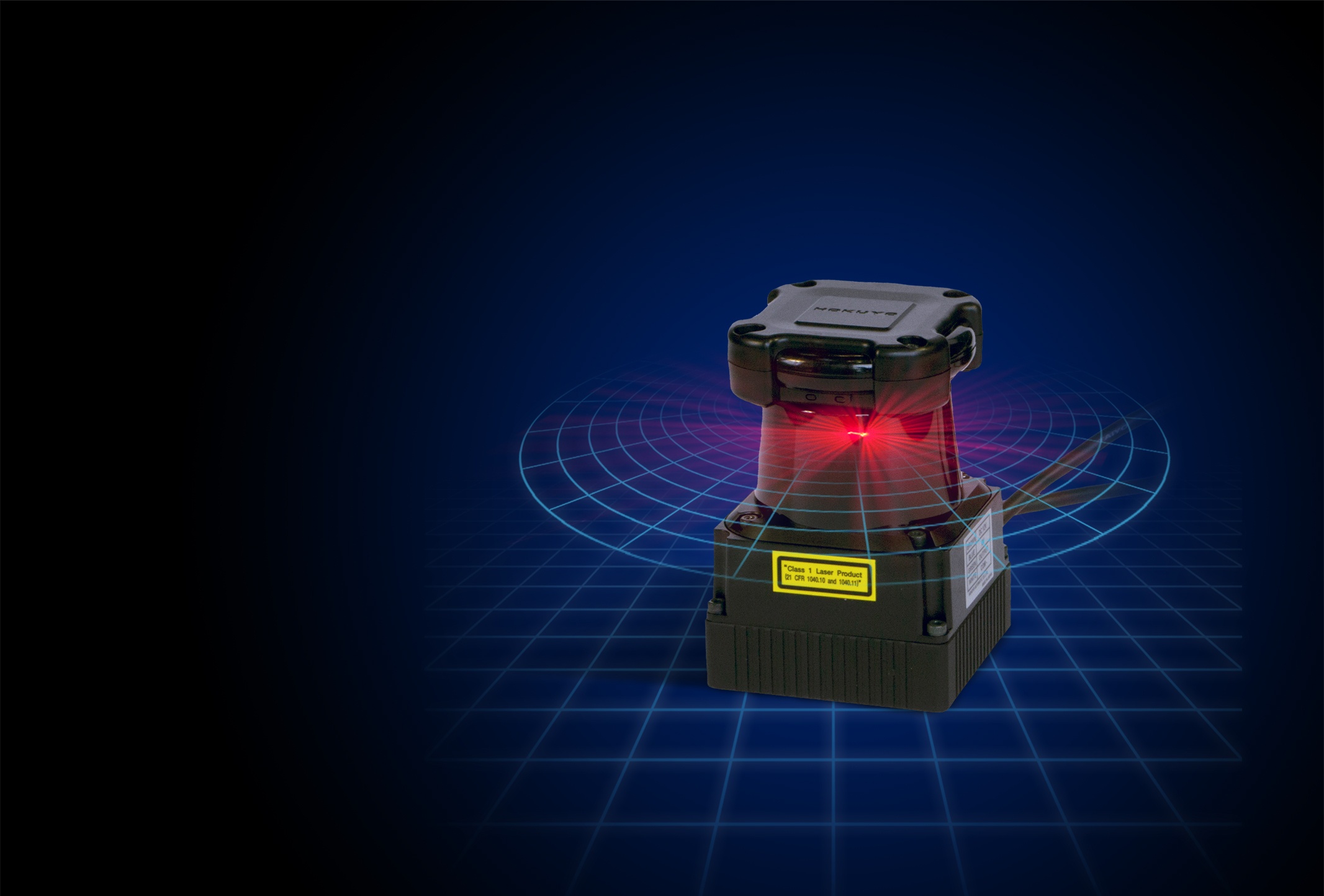

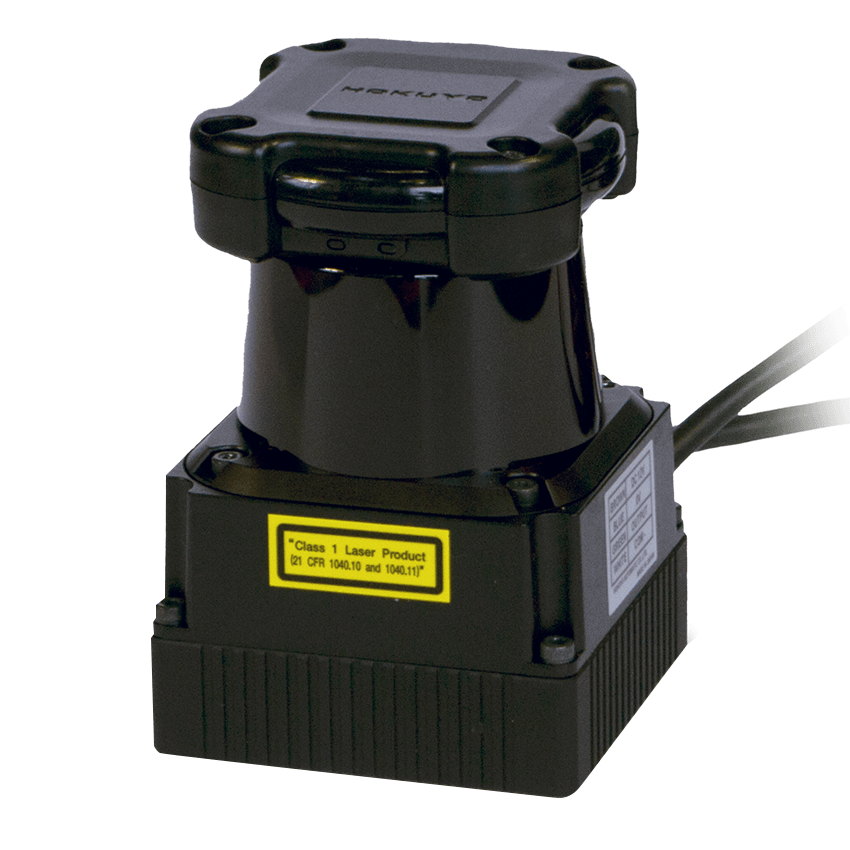

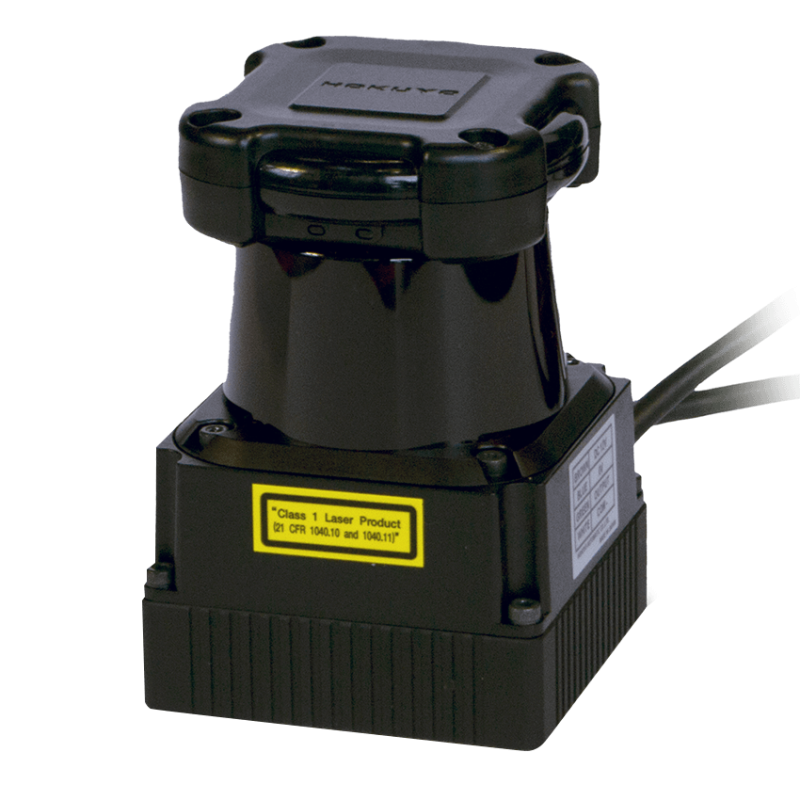

UTM-30LX-F

Overview

A 100Hz scan speed LiDAR with 30m distance data using a high performance motor to deliver this capability. Perfect for applications requiring high volumes of data.

Common Applications

Geomapping

Operation Benefits

Indoor/ Outdoor - Indoor
Range - 30m
Scan window/ angle - 270°
Communication - USB 1.1/2.0 SCIP 2.1
Dimensions (l x w x h) - 60mm x 60mm x 85mm
Weight - 370g

Technical Information

Technology - Time of Flight
Range - 30m
Field of View - 270.4°

Product details

The UTM-30LX-F comes with all the same standard features as the UTM-30LX, however, the device is fitted with a high specification motor capable of delivering 100HZ scan speeds.

  • Range - 30m
  • Field of View - 270.4°
  • Resolution - 0.65º
  • Scan Speed - 10ms
  • Multi Echo - No
  • Type (2D/3D/RADAR) - 2D
  • Supply - 12VDC ±10% | Max: 1A, Normal : 0.7A
  • Output - Synchronous Output 1 point
  • Input - N/A
  • Weight - Approx. 400g (including cable)
  • Accuracy - 0.1 to 10m:±30mm, 10 to 30m:±50mm Under 3000lx : White Kent Sheet: ±30mm (0.1m to 10m) Under 100000lx : White Kent Sheet: ±50mm (0.1m to 10m)
  • Operating Temperature Range - "-10ºC to 50ºC Less than 85% RH (Without dew, frost)"
  • Detection range - 0.1 to 30m (White Square Kent Sheet 500mm or more) Max.60m
  • Resolution - 0.65°(360°/552 steps)
  • Repeated accuracy - 1mm Under 3000lx: = 10mm (White Kent Sheet up to 10m) Under 100000lx : = 30mm ¹(White Kent Sheet up to 10m)
  • IP Rating - IP64
  • Connections - Power and Synchronous output:2m flying lead wire USB:2m cable with type-A connector
  • Output - Synchronous Output 1 point
  • Light source - Semiconductor laser diode(λ=905nm) Laser safety Class 1(FDA)
  • Supply voltage - 12VDC ±10%
