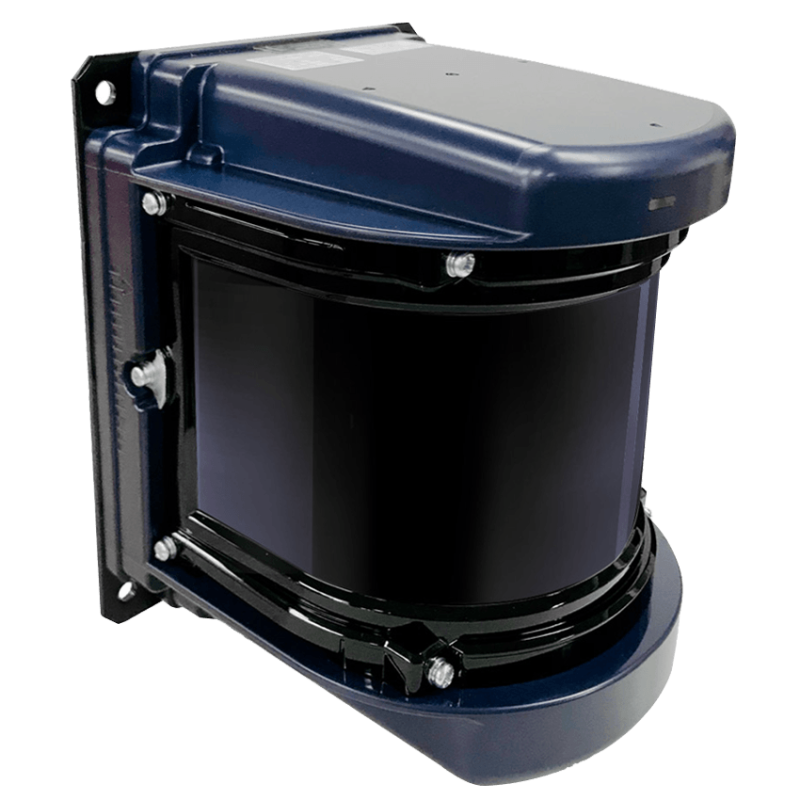

UXM-30LAH-EWA

Overview

A high performance outdoor LiDAR & Obstacle Detector, with up to 80m distance data, built in heater and configurable area patterns for collision avoidance.

Common Applications

Collision Avoidance
Boom Protection
RTG Obstacle Detection

Operation Benefits

Indoor/ Outdoor - Outdoor
Range - 30m
Scan window/ angle - 190°

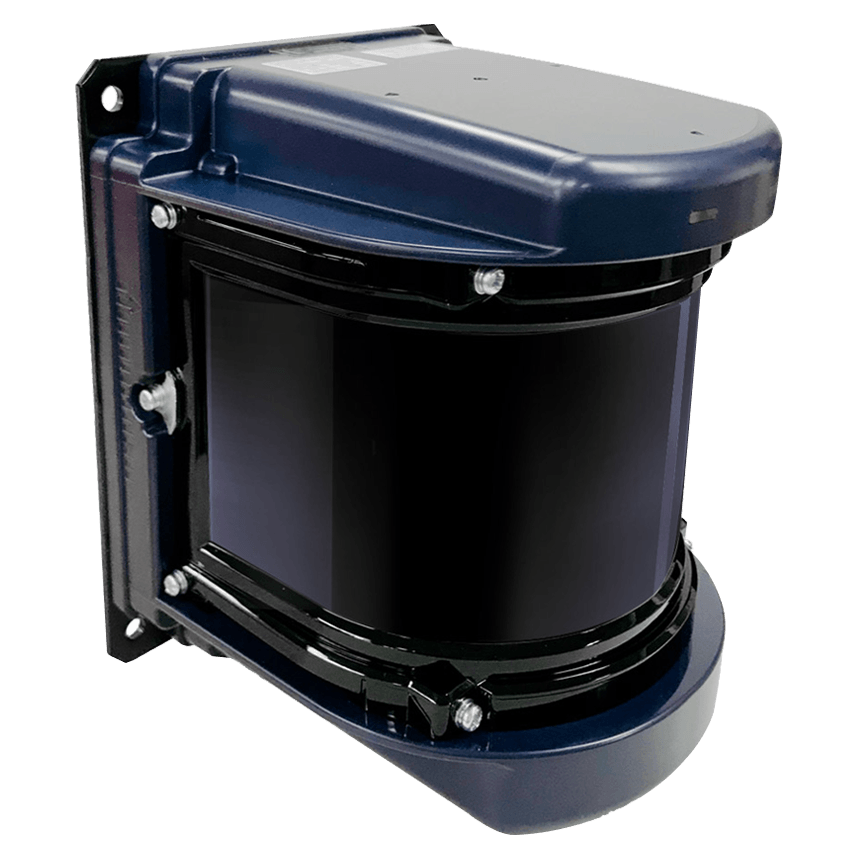

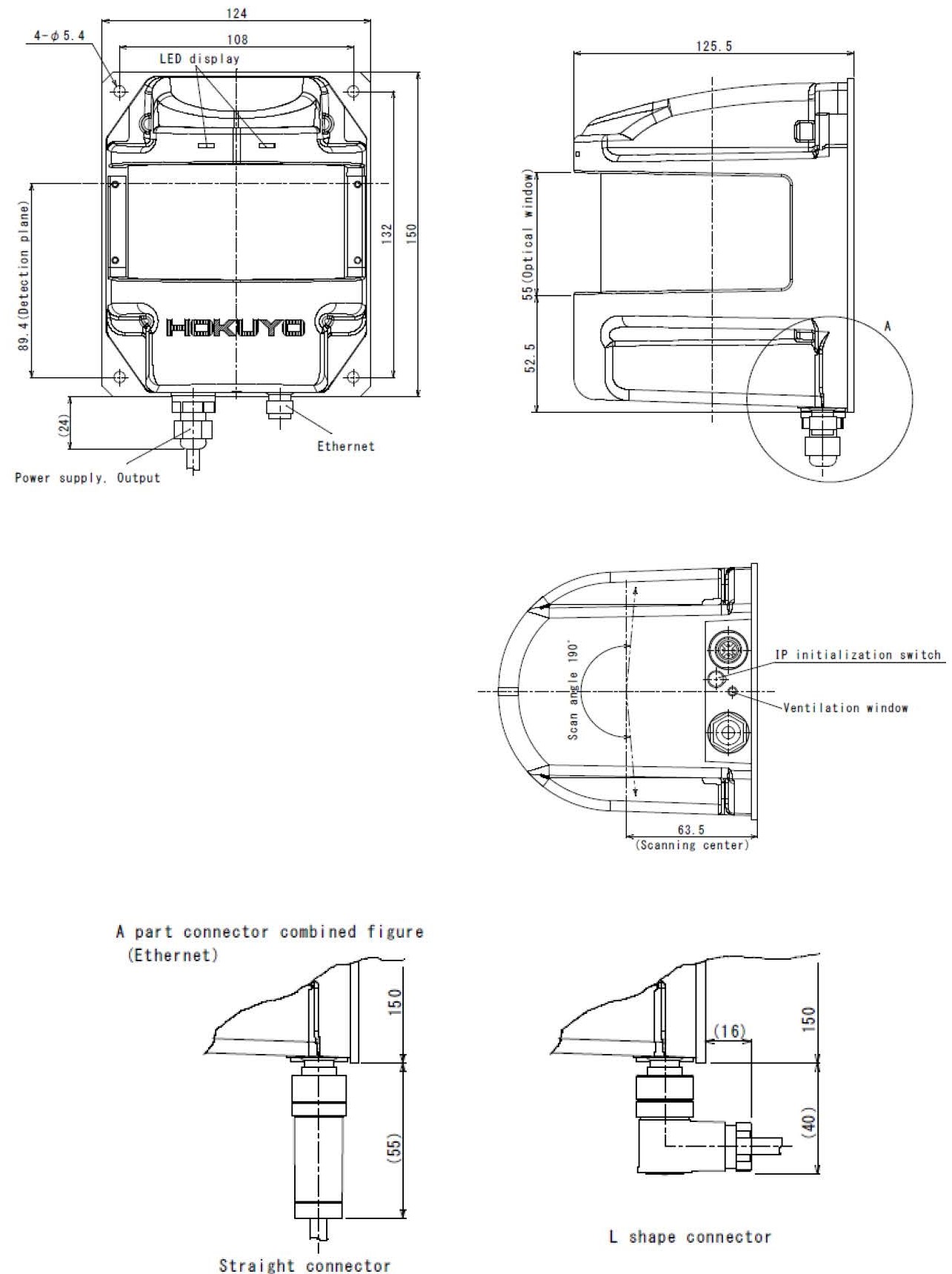

Dimensions (l x w x h) - 124mm × 126mm × 150mm
Weight - 1200g

Technical Information

Technology - Time of Flight
Range - 30m
Field of View - 190°

Product details

Delivering a 190º field of view and a range of up to 80m this device offers a great option for outdoor collision avoidance and navigation of outdoor vehicles. There are also built in filters to enable the device to work well in both rain and fog.

  • Range - 30m
  • Field of View - 190°
  • Resolution - Approx. 0.125° (360°/2880 divisions)
  • Scan Speed - 50ms (rotating speed of motor: 1200rpm)
  • Type (2D/3D/RADAR) - 2D
  • Supply - Steady-state current: 600 mA or less at 12 VDC, 300 mA or less at 24 VDC Starting current: 1.5 A or less at 12 VDC, 0.75 A or less at 24 VDC Heater in use (0°C or below): 1.25 A or less at 12 VDC, 1.25 A or less at 24 VDC
  • Output - OUTPUT 6 points: Synchronization master output, synchronization output, output of failure, area detection output 1 to 3
  • Input - INPUT 5 points: Synchronization input, area input 1 to 4 (total 15 patterns)
  • Weight - Approx. 1200g (excluding cable)
  • Accuracy - 10% reflectance, black paper, 0.1 to 15 m: ±30 mm, 15 to 30 m: ±50 mm 0.1 to 30 m: ±50 mm Ambient illuminance: 3,000 lux or less 0.1 to 20 m: ±50 mm Ambient illuminance: 100,000 lux or less 90% reflectance, white Kent paper, 0.1 to 30 m: ±30 mm 0.1 to 30 m: ±50mm Ambient illuminance: 3,000 lux or less 0.1 to 30 m: ±50mm Ambient illuminance: 100,000 lux or less
  • Operating Temperature Range - -10 to +50°C 85%RH (Without dew, frost)
  • Detection range - Guaranteed value of detection: 0.1 to 30m (Reflectance of 10%, black paper, 500 mm × 500 mm) 0.1 to 80 m (Reflectance of 90%, white Kent paper, 1,000 mm × 1500 mm Maximum detecting distance: 80 m (maximum value of area setting) Minimum object to be detected : 33 mm (5 m), 65 mm (10 m), 200 mm (30 m)
  • Resolution - Unit of 1mm
  • Repeated accuracy - 10% reflectance, black paper,  0.1 to 15 m: σ < 10 mm, 15 to 30 m: σ < 15 mm 0.1 to 30 m: σ < 20 mm Ambient illuminance: 3,000 lux or less 0.1 to 20 m: σ < 30 mm Ambient illuminance: 100,000 lux or less 90% reflectance, white Kent paper, 0.1 to 30 m: σ < 10 mm 0.1 to 30 m: σ < 15 mm Ambient illuminance: 3,000 lux or less 0.1 to 30 m: σ < 30 mm Ambient illuminance: 100,000 lux or less
  • IP Rating - IP67
  • Output - OUTPUT 6 points: Synchronization master output, synchronization output, output of failure, area detection output 1 to 3
  • Light source - Semiconductor laser, λ = 905 nm, safety class of the laser = 1
  • Supply voltage - 10 to 30VDC
